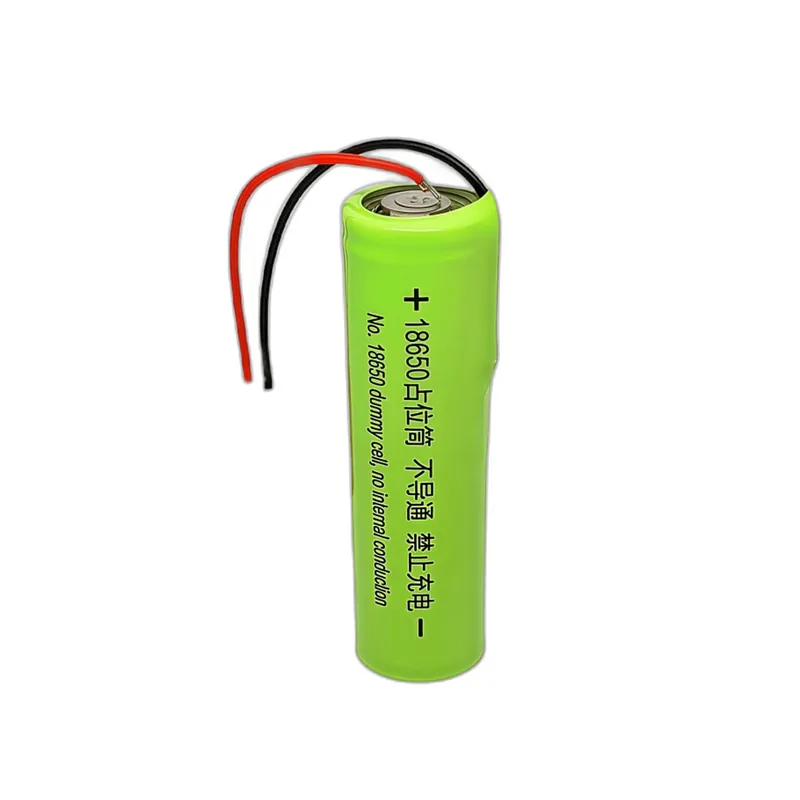

AliExpress alternative to the 18650 Dummy Cell Battery

This is a functional equivalent, meaning this listing fills the same role as a standard 18650 dummy cell, holding a battery slot open without conducting current. The key distinction is that this AliExpress version explicitly bundles a JST connector cable, which basic dummy cells typically lack, and is confirmed 0V non-conductive rather than a pass-through type. There is no reference frame to verify the exact form factor matches the reviewed product's casing dimensions, so measure your battery bay before ordering. At $3.17 versus the ~$2 baseline, the premium is modest and likely reflects the included JST cable.

Builders who need a pass-through dummy cell, one that routes voltage from an adjacent cell through the slot, should pass on this listing, since the product is explicitly 0V non-conductive and will not carry any current. It is designed purely as a physical placeholder to fill an unused 18650 slot, not to extend a series or parallel circuit. If your device requires all slots to be active for correct voltage output, this cell will break that circuit.

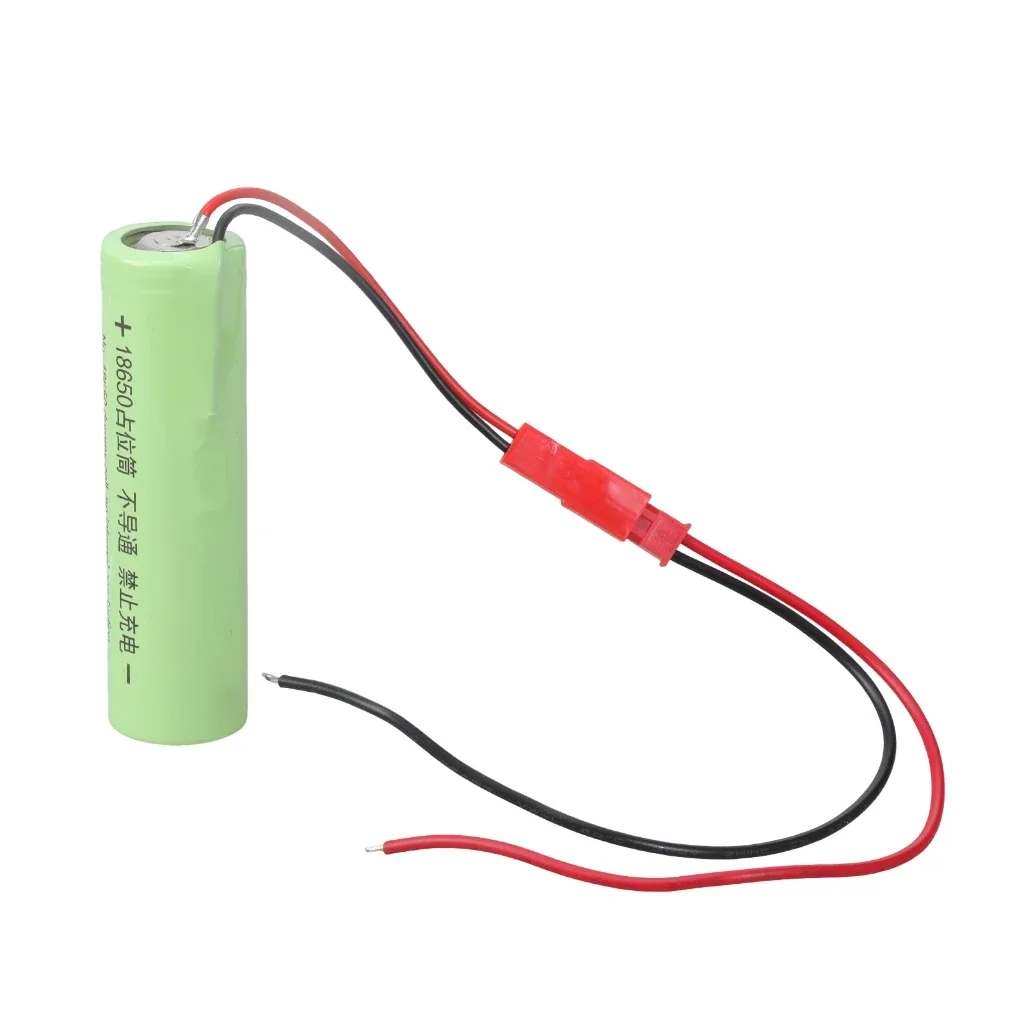

The bundled JST connector cable lets you wire the dummy cell's terminal position to an external circuit or microcontroller header without soldering directly to the cell holder, which is useful in prototyping rigs where the slot needs a signal tap or ground reference lead. Basic dummy cells ship with bare terminals or solder tabs, so the JST adds a plug-and-play connection point. Verify your board's JST pitch (commonly 2.0 mm or 2.54 mm) before assuming the included connector mates directly.

Yes, in a series-wired multi-cell holder, inserting a 0V non-conductive placeholder breaks the series chain, dropping pack voltage by one cell's worth. This listing is therefore best suited to parallel-wired holders or single-slot placeholders where the dummy cell simply reserves space mechanically. Confirm your battery holder's wiring topology (series vs. parallel) before using a non-conductive dummy to avoid under-voltage faults in the host device.

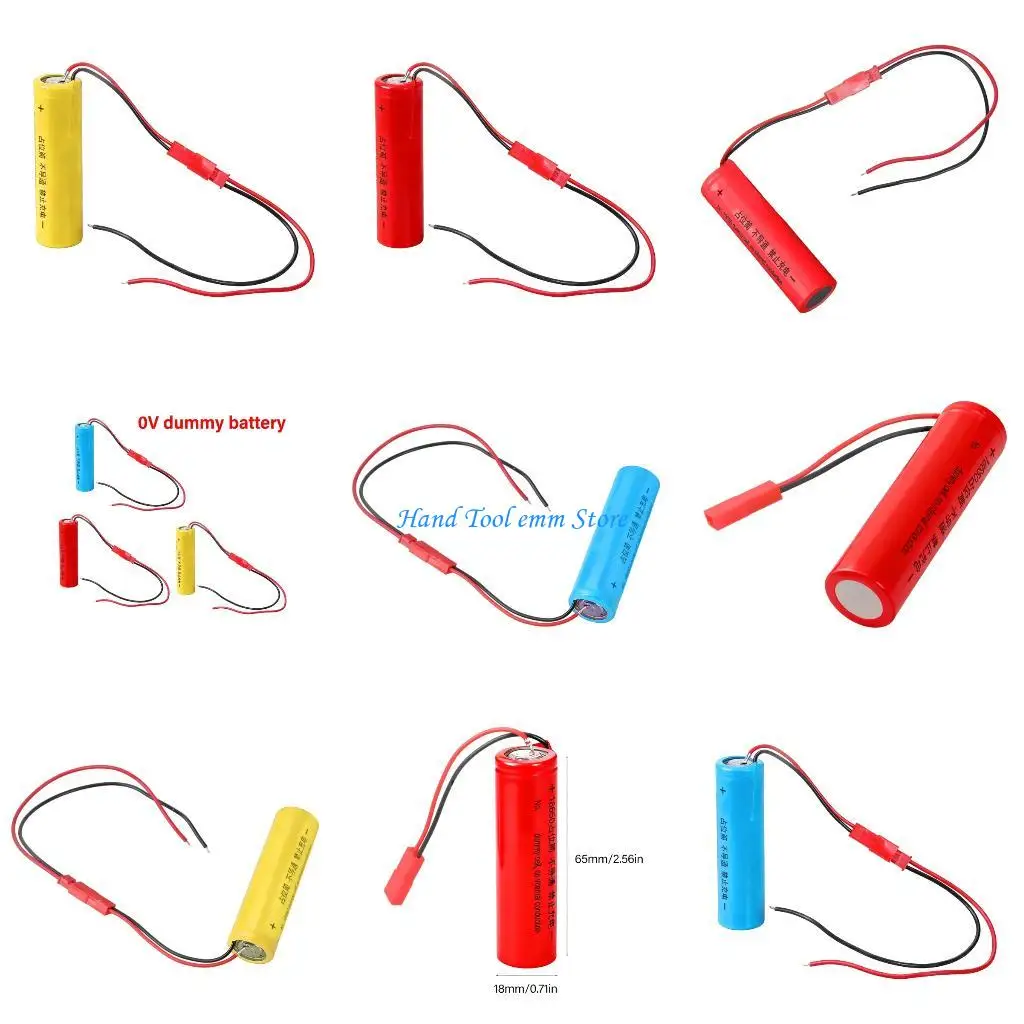

Standard 18650 cells measure 18 mm diameter × 65 mm length, and most dummy cells match that envelope, but there is no confirmed reference frame for this specific listing's dimensions against the reviewed product. Some dummy cells add a slightly thicker plastic body or protruding terminal nub that can bind in tight spring-loaded holders. Measure your holder's inner diameter and check seller photos for overall length before purchasing if clearance is tight.

Bare 18650 dummy cells typically retail around $1-2 each, so the $3.17 price reflects roughly a $1-1.17 premium over the ~$2 reference baseline. Given that sourcing a separate JST pigtail and soldering it yourself would likely cost similar or more in parts and time, the bundled cable represents fair value for prototypers who need that connection. Buyers who only need a passive mechanical placeholder with no cable can find cheaper bare-terminal options and save the difference.
